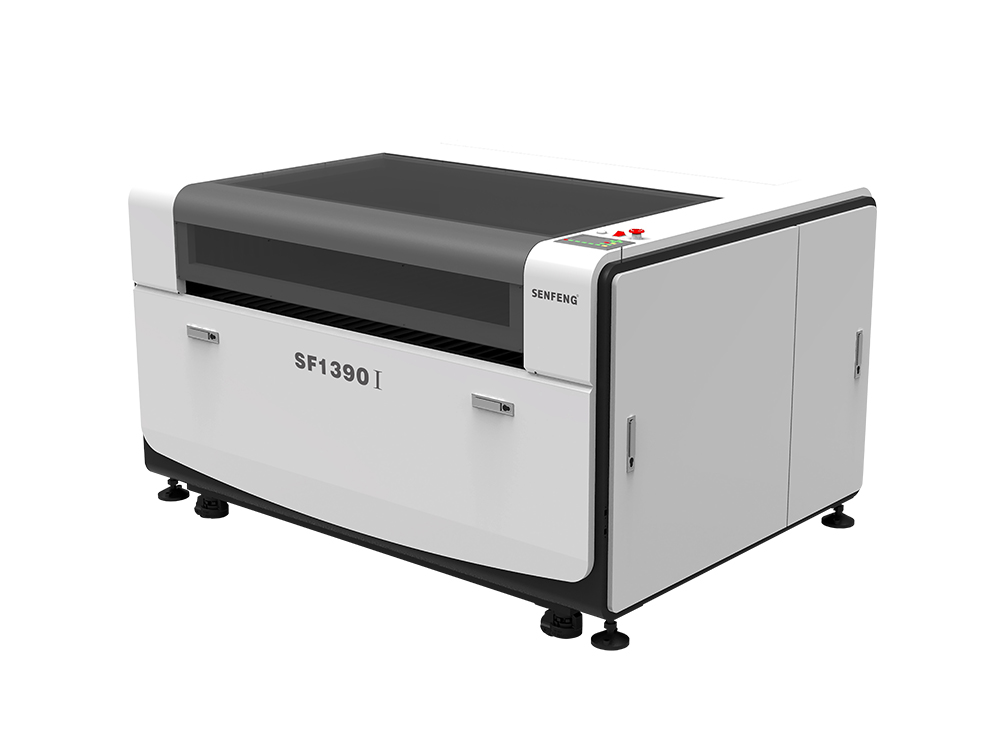

Laser CO2 Cutter and Engraver Machine SF1390

Laser CO2 Cutter and Engraver Machine Tube Head Industrial Design Model SF1390 Working Area 51x36 Inches for Cutting and Engraving is ideal for a medium-size area facility when a large work table and high volume capacity is needed.
Availability:
Quantity:
Product Description

Laser CO2 Cutter and Engraver Machine Tube Head Industrial Design Model SF1390 Working Area 51x36 Inches for Cutting and Engraving is ideal for a medium-size area facility when a large work table and high volume capacity is needed. It has a standard-sized cabinet making it able to work with larger materials. it is also designed with a pass-through in the back to fit longer materials without having to previously cut them. It is designed with our industrial-grade system. It is able to cut and/or engrave wood, MDF, acrylic, fabrics, leather, glass, rubber,  stone, marble, anodized aluminum, etc. Works 24 hours a day!

Machine Features

1.The "upgrade version" machine integrates various auxiliary machine power supplies on the fuselage, unified control,all handles and door locks are ergonomically designed, and the huge auxiliary machine reserve box design on the back of the machine makes the customer's on-site auxiliary machine placement more reasonable, fully meet the 6S management requirements;

2.Equipped with SENFENG Laser self-developed SENFENG software and controller, adopts high-speed Interpolation movement algorithm to achieve high-speed and stable performance;

3.Support Ethernet(10/100M) and USB2.0 transmission;

4.Support dynamic display which will show process path and coordinate point, real-time work track display;

5.Support work time preview and interruptible engraving recovery after power-off;

6.Support laser spot compensation (inward contraction and outward extension), the laser cutting Path optimization can be done on software.

7.Modular design can be equipped with different functions which make smaller size and less shipping cost.


Tech Spes
ModelSF960SF1390SF1610
Working area (mm)900*6001300*9001600*1000
Working area (ft)2*34*362*39 inch
Laser sourceCo2 Glass tube /metal tube
Laser power80-150W
Laser safety classclass 4 laser product
SoftwareRD works
Resolution ratio≤0.0125mm
Position systemRed light position system
Repeated positioning accuracy≤±0.02mm/s
InterfaceUSB
Support graphic formatDST, PLT, BMP, DXF
motorfaster stepper motor
Operating humidity5-95%
Cutting speed1-600mm/s
Cooling ModeWater cooling
Input PowerAC110V/220V, 50-60Hz
Optionalsmall ccd with 4333DPI
Rotary device
Dual or more head
Servo motor and driver
Gear and rack transmission system
(customized available)


Applications

Non-metal materials such as acrylic, double color board, Plexiglas,MDF.

Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.

Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo

and wooden product, garment and leather, embroidery, decoration and upholster industry.
